Challenger CL10AV3 10,000 lb ALI Certified Versymmetric Two-Post Adjustable Lift

$7,147.00

Challenger’s CL10V3 model features our exclusive Versymmetric® technology to allow you to service the widest range of vehicles and maximize your bottom line. 3-stage front and 3-stage rear arms with our industry-first directSPOT™ design eliminate the need to shuffle a vehicle back and forth to swing the front arm clear of the tire to reach recommended lift points. Accurate first-try spotting will boost your productivity as well as reduce frustration in your shop.

We also offer the CL10V3 in several configurations to meet your service application needs. A drive-on pad option provides the quickest vehicle spotting for express bays. Our added Quick Cycle™ models can rise in just 27 seconds and lower in only 17 seconds. Quick Cycle™ technology’s increased lift speed will drastically boost your service potential. Adjustable height and width options are also available. In addition, choose between a wide range of accessories to make the CL10V3 the perfect choice for your shop. Expand your service potential with our most versatile, easy-to-operate lift.

Worldwide shipping on all orders.

  • 30 days easy returns
Challenger CL10AV3 10,000 lb ALI Certified Versymmetric Two-Post Adjustable Lift
Challenger CL10AV3 10,000 lb ALI Certified Versymmetric Two-Post Adjustable Lift
$7,147.00

Shop the Challenger CL10AV3 10,000 lb ALI Certified Versymmetric Two-Post Adjustable Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

  • 10,000 lbs. lift capacity

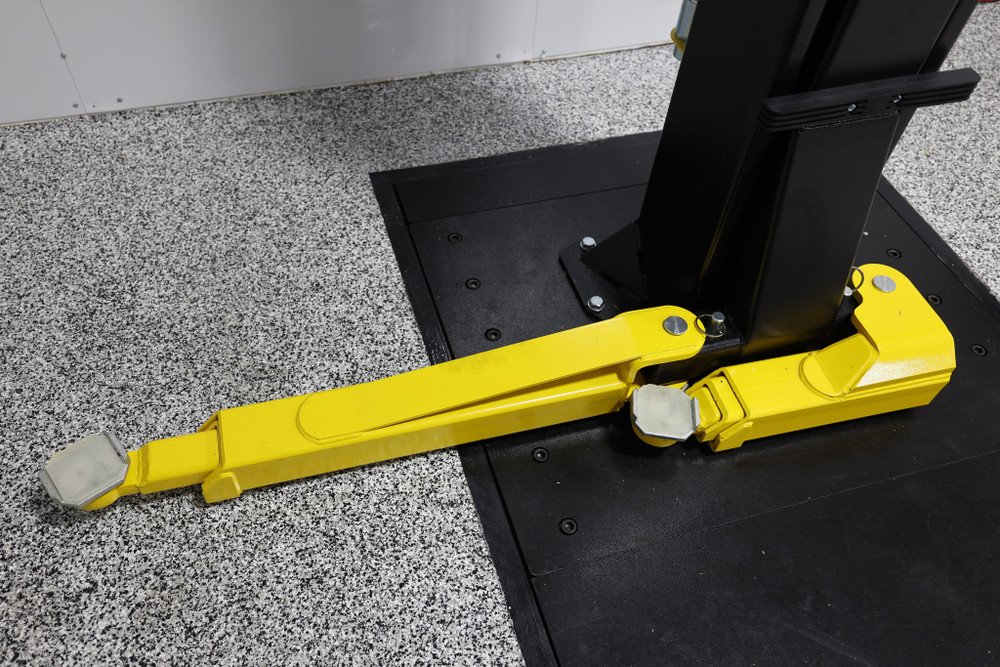

  • Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
  • Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life
  • 48 in. elongated carriage design increases lift life
  • Three settings for width adjustment, from 11′ 6.5″ to 12′ 6.5″
  • Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available
  • Padded overhead shut off system prevents vehicle damage

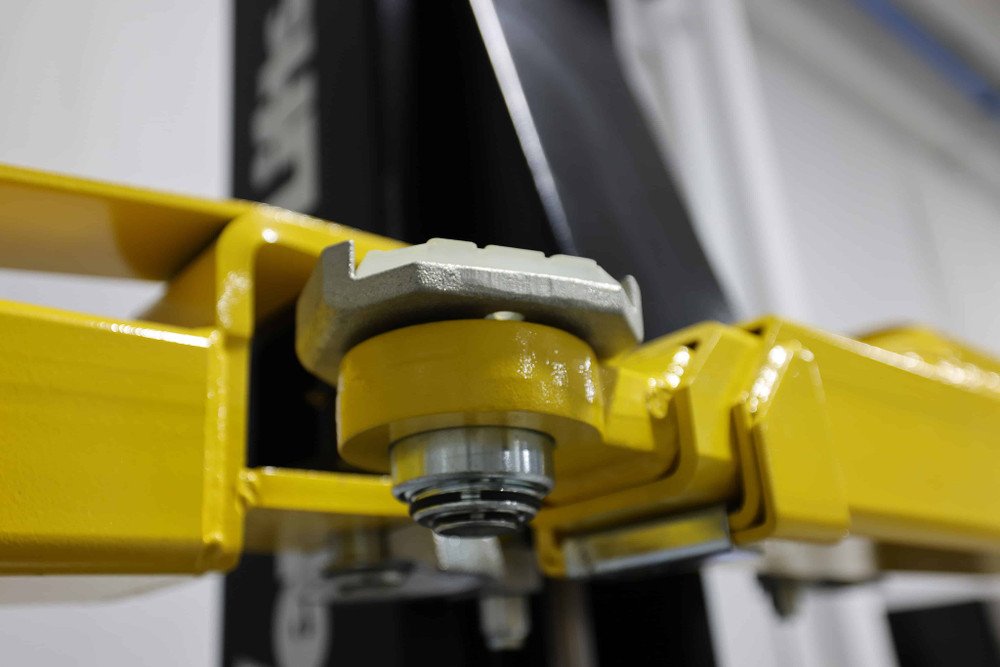

  • Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
  • Fully gusseted base plate design increases column rigidity

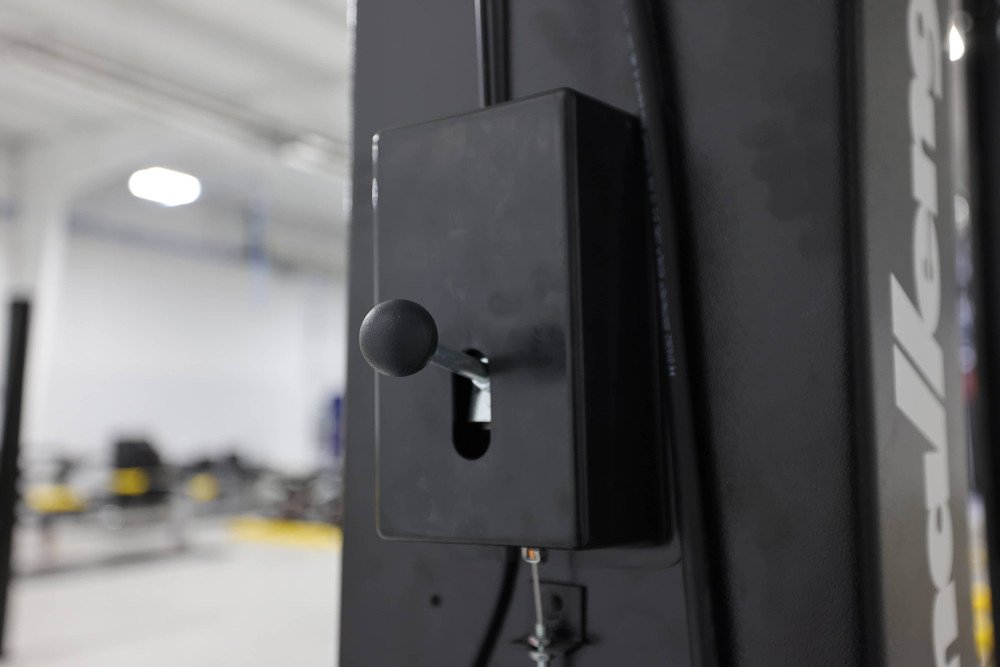

  • Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
  • Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
  • Premium powder coat finish provides long-lasting durability
  • ALI® Certified
Model Number CL10AV3
Lifting Capacity 10,000 lbs.
Lift Configuration Standard
Arms 3-stage front/3-stage rear
Rise Height 74.125”
Overall Height 11′ 2″ or 11′ 8″
Overall Height (Cylinder Extended) 11′ 11″
2’ Height Extension Available Yes
3’ Height Extension Available Yes
Overall Width 11′ 6.5″ / 12′ .5″ / 12′ 6.5″
Drive-Thru Clearance 100″ / 106″ / 112″
Floor to Overhead Switch 10′ 8.5″ – 11′ 2.5″
Front Arm Reach 20” – 42”
Rear Arm Reach 37.625” – 60”
Screw Pad Height 3.875” – 6.125”
Inside Columns 110″ / 116″ / 122″
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise 38 s
Ceiling Height Required 12′
ALI/ETL Certified Yes
Colors Available Red, Blue, Black

About the Challenger CL10AV3 10,000 lb ALI Certified Versymmetric Two-Post Adjustable Lift

This unit is quality-tested and ready to install. Browse more Two Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
