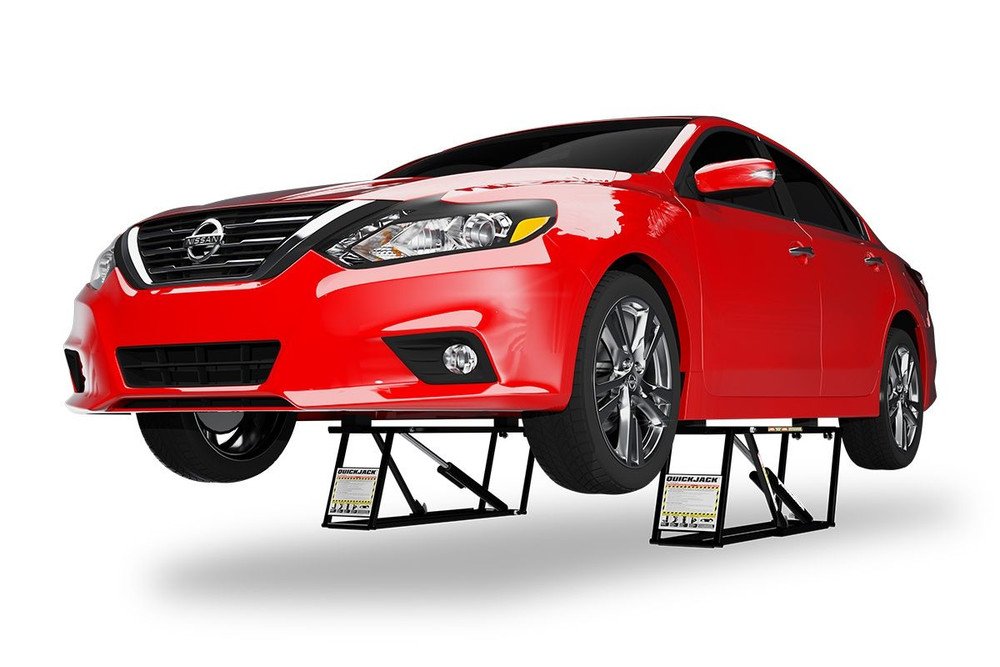

QuickJack BL-3500SLX 3,500 Lb. Capacity Portable Car Lift

Name: QuickJack BL-3500SLX 3,500 Lb. Capacity Portable Car Lift - JV Auto Shop
SKU: VE-9269
Price: 1925.00 AUD
Availability: InStock

$1,925.00

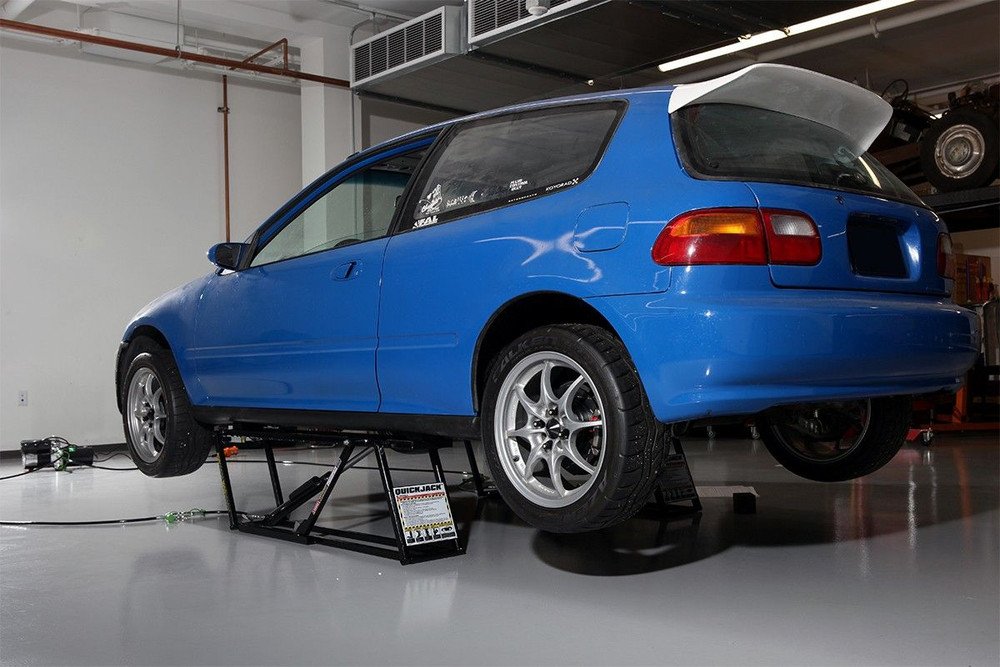

You’re looking at the smartest home car lift ever made. The QuickJack BL-3500SLX portable car lift system will change everything you thought you knew about mobile auto repair. QuickJack gets your vehicle about 21″ in the air in less than 30 seconds. It’s cool.

The BL-3500SLX has a 3,500-lb. lifting capacity. As the smallest and lightest frame assembly in our lineup, the true strength of this portable car lift is that it goes virtually anywhere. This QuickJack is so lightweight and space-efficient that it fits in the average car trunk or backseat. Following the initial one-time assembly, all you have to do is hook up the power. With the frames and rubber blocks in place under your vehicle’s lift points, QuickJack will be up and running in no time. It’s really that easy.

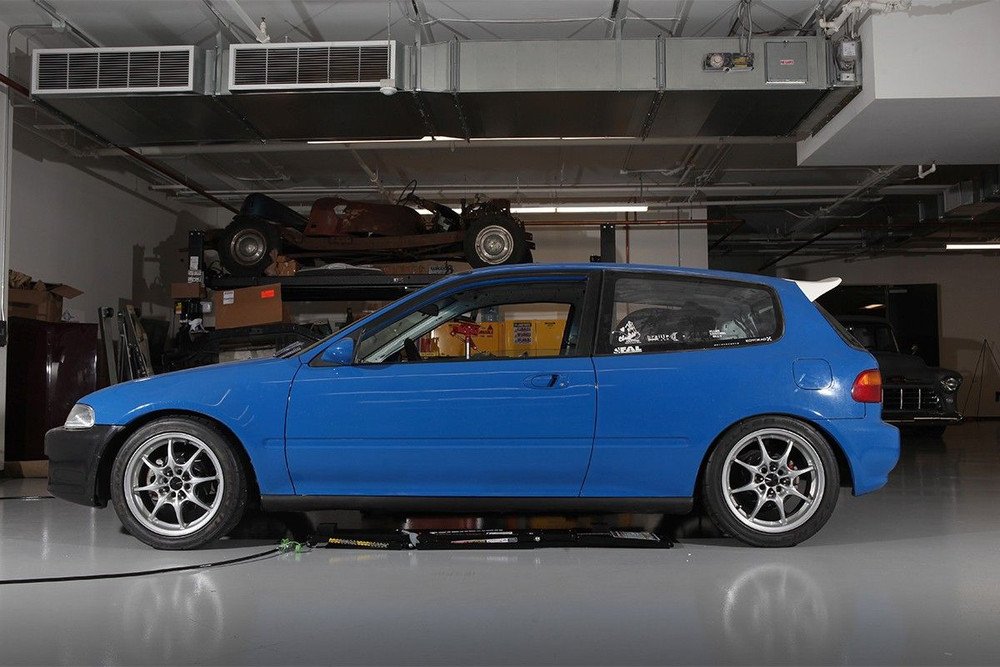

Its super-low 3″ profile lets the QuickJack fit where other car lifts and jacks can only dream. And because there aren’t any cross members to worry about with this portable garage lift, you can tailor the platform spacing to fit nearly any vehicle 3,500 lbs. and under. Its lightweight nature makes this portable car lift the perfect tool for the track. Hundreds of satisfied racers and enthusiasts have enjoyed QuickJack for quick wheel service or tune-ups away from home. An optional DC power unit connects the car lift to your car battery or portable battery pack.

Description

Shop the QuickJack BL-3500SLX 3,500 Lb. Capacity Portable Car Lift at JV Auto Shop — every unit is carefully inspected, warrantied, and ready to ship fast across the AU.

Features

Perfect for the track

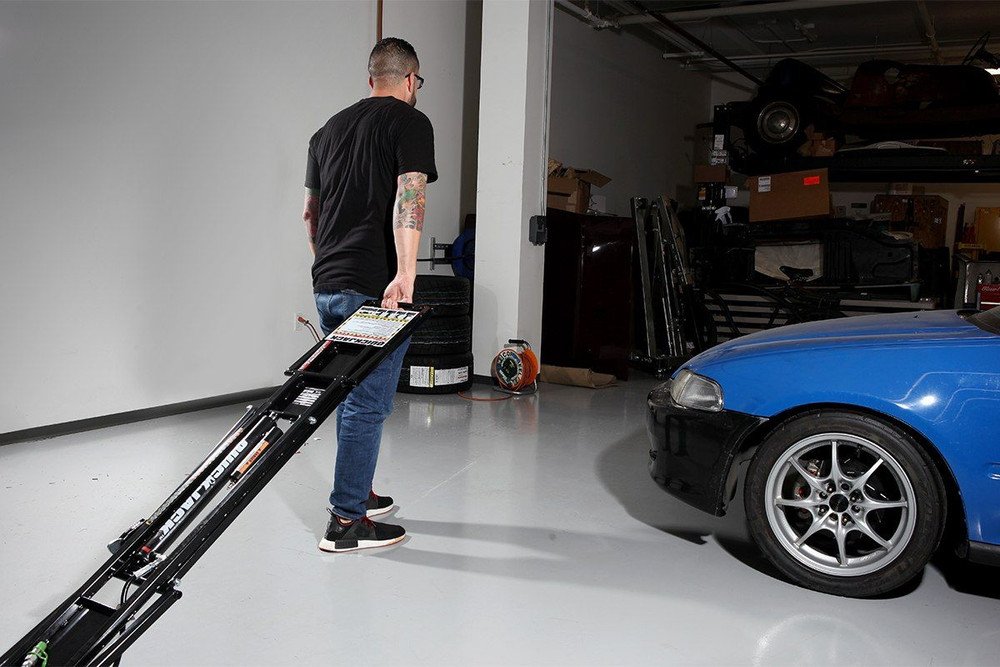

Convert your garage lift to a portable car lift just by rolling it to the trunk of your car and hauling it to the track. 12V DC power option makes this the world’s first-ever true track lift. If you don’t have a professional pit crew at your disposal, you’ll want QuickJack by your side.

Have a heavier vehicle? The 5000TL is also great for track day.

Extended block trays

We increased the size of our rubber block trays to improve access to varied lift points. Position blocks from 26.75″ – 50.5″ apart, satisfying most lift point spreads.

Zero-leak fittings

Our car lift components include flush-face hose fittings to ensure fluids stay in the unit and not on your garage floor. You don’t want to be the one to leak all over the track, either.

Open-center design

Don’t let us get in your way! Inspired by larger frame-engaging car lifts, our open-center design gives users total access to the wheels and undercarriage.

Tech specs

Lifting capacity

3,500 lbs. (1,588 kg)

Lowered height

A – Frame only: 3″ (76 mm)

B – With 2″ block: 3.5″ (89 mm)

Lifting height

C – Frame only: 16.5″ (419 mm)

D – With 2″ block: 17.5″ (445 mm)

E – With 3″ block: 18.5″ (470 mm)

F – Max. height: 21″ (533 mm)

G – With adapters: Not compatible

H – With adapters + pin: Not compatible

Lift point spread

I – Maximum: 50.5″ (1,283 mm)

J – Minimum: 27″ (686 mm)

Frame dimensions (ea.)

K – Width: 10.5″ (267 mm)

L – Length: 62.5″ (1,588 mm)

A – Height: 3″ (76 mm)

Weight: 60 lbs. (27 kg)

Other specs

Power/Voltage: 110V, 60HZ, 1PH

Time to full rise: 30 seconds

Power unit weight: 30 lbs. (13 kg)

Shipping weight (per frame): 64 lbs. (29 kg)

What’s inside?

BL-3500SLX Left Frame Assembly

BL-3500SLX Right Frame Assembly

1x Hydraulic power unit with control

4x Medium rubber lift blocks (2″)

4x Tall rubber lift blocks (3″)

2x Short hydraulic hoses

2x Long hydraulic hoses

2x Frame-positioning handles

Fittings and thread tape for setup

Instruction manual

Requirements:

3 liters of Automatic Transmission Fluid

Air source to inflate air cylinders up to 50 PSI

Assembly tools

Note: QuickJack is shipped in three boxes

About the QuickJack BL-3500SLX 3,500 Lb. Capacity Portable Car Lift

This unit is quality-tested and ready to install. Browse more Portable Car Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
