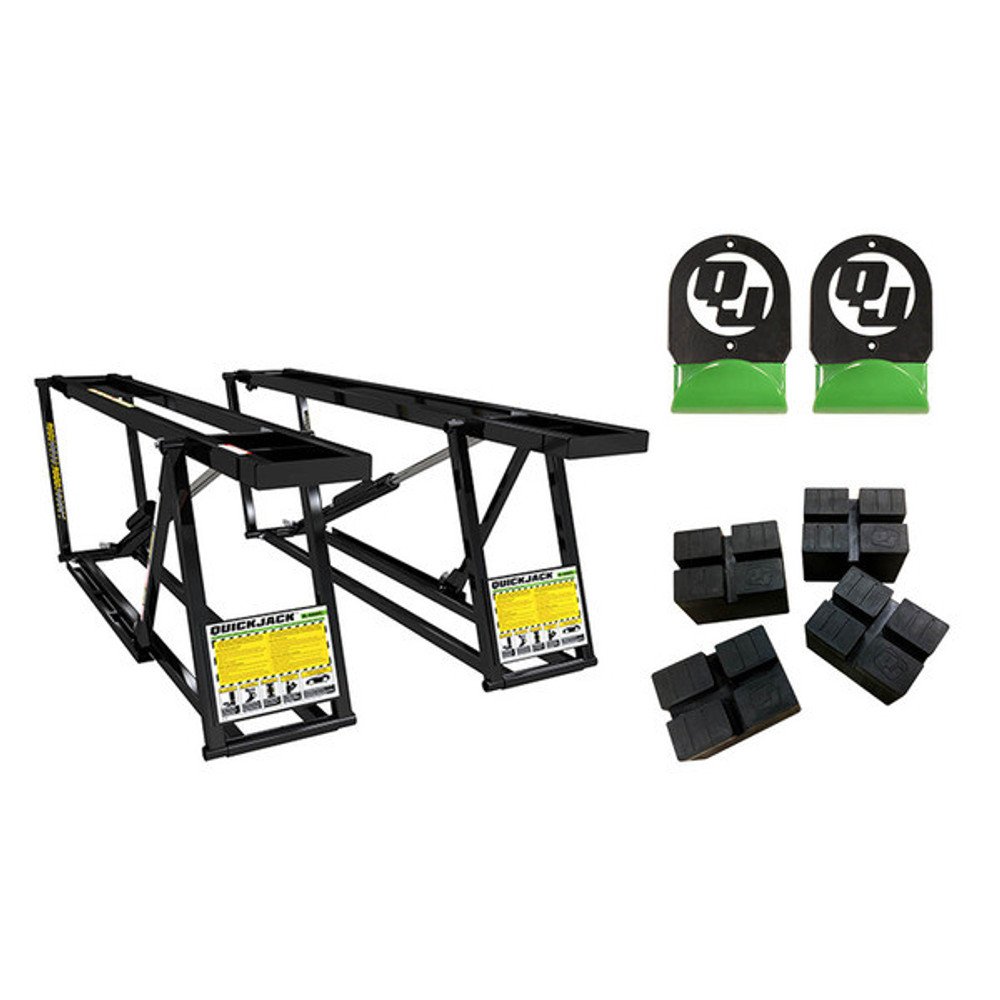

Shop the QuickJack Package (1) 5000TLX-110V + (1) Wall Hangers Set + (1) Pinch Weld Blocks Set at JV Auto Shop — every unit is carefully inspected, warrantied, and ready to ship fast across the AU.
There are a lot of ways to stow your QuickJack in a garage: you can lean them against a wall; stack them on top of each other; tuck them together under your vehicle, etc. The opportunities for easy and convenient. They’re practically endless. While some people prefer to hang their frames on the wall, up and out of the way. These convenient wall hangers are the best way to make that happen.
If you’d like to hang your portable car lift frames on the wall of your garage, QuickJack’s exclusive hangers will mount directly into a sturdy wall stud for safe, simple storage. It is recommended that the hangers are installed at the same height while also being high enough that the frames will rest on the floor. This will make it much easier to lift and hang the frames onto the hooks of the wall hangers.
Supporting cars on pinch-weld rails creates excessive pressure points which can end up gouging or tearing the standard rubber blocks. You could also end up inadvertently damaging delicate body rails on unibody vehicles. QuickJack’s urethane rubber pinch-weld blocks were engineered with a cross-cut slotted design, which allows you to position them lengthwise or crosswise. They’re the perfect body cradling tool to safely support rocker panels or sheet metal body rails, especially pinch-weld rails which have been degraded over time due to corrosion from grime and road salt.
You’ll be able to ensure a long lifespan for your lift blocks with QuickJack’s specially designed pinch-weld jack pads. You can place these taller-than-average blocks independently in the lift block trays. Not only that, but they can be stacked without placing a pinch-weld block on top of a small standard block. (The pinch-weld and tall standard blocks should not be stacked.) Ditch the wooden blocks, hockey pucks, and the towels which can slip or tear easily, resulting in vehicle damage, or worse, unstable lifting. The durable urethane rubber is impermeable to oil, grease, and gas. It will also be able to last for years and years of simple, maintenance-free lifting.
Features
- Automatic Safety Locks
- Increased Lifting Height
- One-Handed Operation
- Accessories to Increase Versatility
- Sold in sets of two
- NEW! Now in powder-coated black!
- One size fits all QuickJack models
- Over-engineered to 150% rated capacity
- Solid-steel construction
- Sleek, laser-cut QuickJack logo design
- Designed and engineered by QuickJack
- Specially formulated urethane rubber
- Bilateral deep slots accommodate virtually all pinch weld frames
- Position lengthwise or crosswise
- Water/Chemical resistant and 100% weatherproof
- Single-piece construction for superior hold
- Sold in sets of 4
Specifications
| Capacity |
5,000 lbs. (2,268 kg) |
| A – Frame only: |
3″ (76 mm) |
| B – With 2″ block: |
3.5″ (89 mm) |
| D – With 2″ block: |
21″ (521 mm) |
| E – With 3″ block: |
22″ (546 mm) |
| F – Max. height: |
24″ (616 mm) |
| G – With adapters: |
24″ (597 mm) |
| H – With adapters + pin: |
26.75″ (673 mm) |
| I – Maximum: |
60″ (1,524 mm) |
| J – Minimum: |
37″ (940 mm) |
| K – Width: |
11″ (278 mm) |
| L – Length: |
70″ (1,778 mm) |
| A – Height: |
3″ (76 mm) |
| Weight: |
78 lbs. (35 kg) |
| Power/Voltage |
110V, 60HZ, 1PH |
| Time to full rise: |
30 seconds |
| Power unit weight: |
30 lbs. (13 kg) |
| Shipping Dimensions (ea. Frame): |
73.5″ (L) x 15.25″ (W) x 5″ (H) (1,869 mm x 385 mm x 129 mm) |
| Shipping weight: |
318 lbs. (144 kg) |
| A – Width: |
4.75″ (121 mm) |
| B – Height: |
6.75″ (172 mm) |
| C – Depth: |
2.25″ (57 mm) |
| Weight (ea.): |
1 lbs. (0.5 kg) |
| Shipping weight: |
3 lbs. (1.4 kg) |
| A – Length: |
4″ (102 mm) |
| B – Width: |
3″ (76 mm) |
| C – Height of puck: |
3″ (76 mm) |
| D – Pinch-weld width: |
0.4″ (10 mm) |
| E – Pinch-weld depth: |
0.5″ (13 mm) |
Click here for Setup and Operation Manual
